Product:Cable snap bushing

These special grommets have a good performance at low and high temperatures and good resistance to water, dilute acids, alkaline solutions, salts, ozone and UV rays. They also have a good resistance to ketones, mineral oils, petrols and highly resistant to aging. They come with great softness and excellent dielectric properties. They are suitable for holes which start from the sheet metal edge.


CodeABCDEFGHThicknessMOQ-PcsDATA SHEETCADViewCart

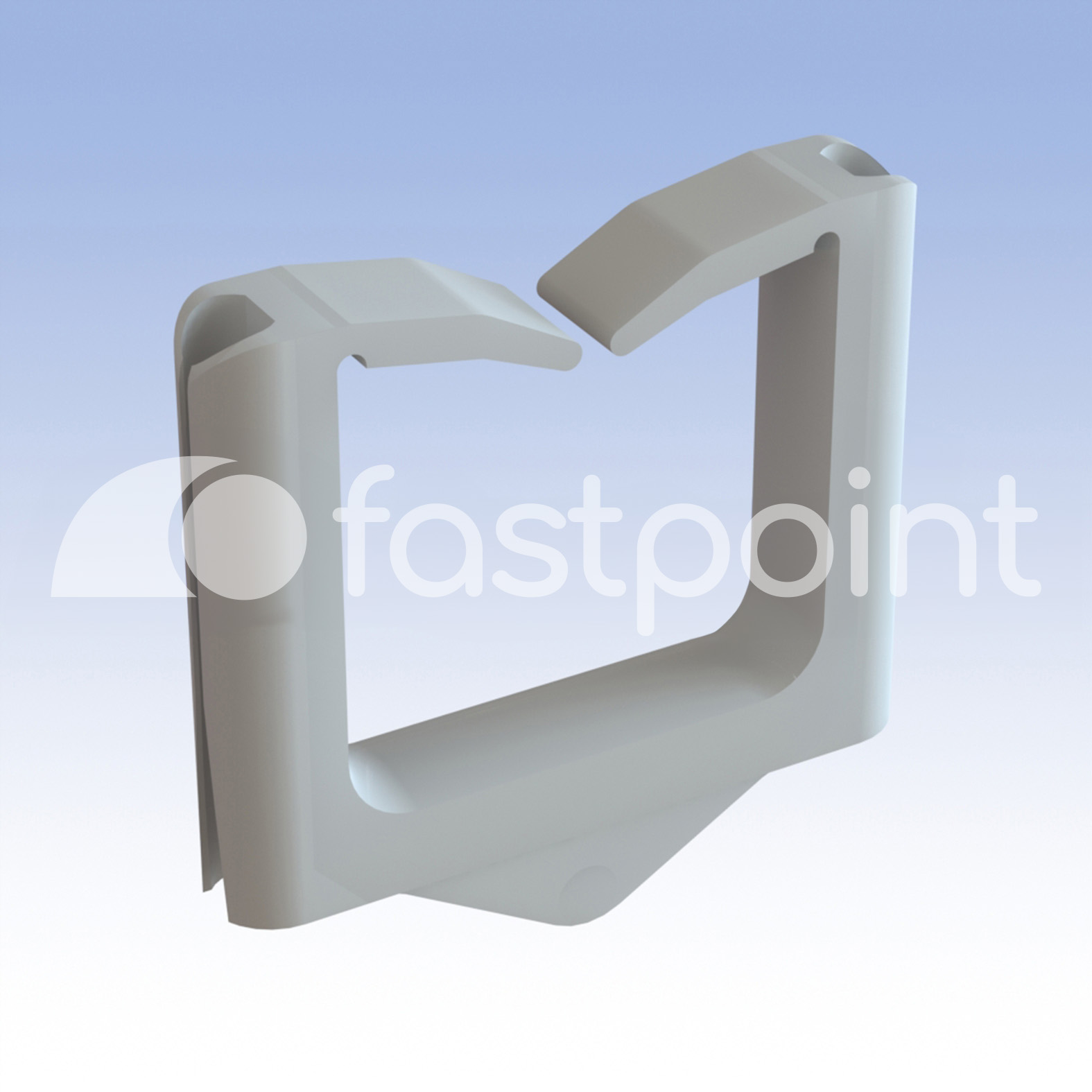

8193AA0019,811,57,312,114,012,32,8Ø 2,50,8 - 2,01.000
8194AA0026,017,014,021,021,021,02,7Ø 2,50,8 - 2,0500
8195AA0033,222,722,428,827,029,02,8Ø 2,50,8 - 2,0500
