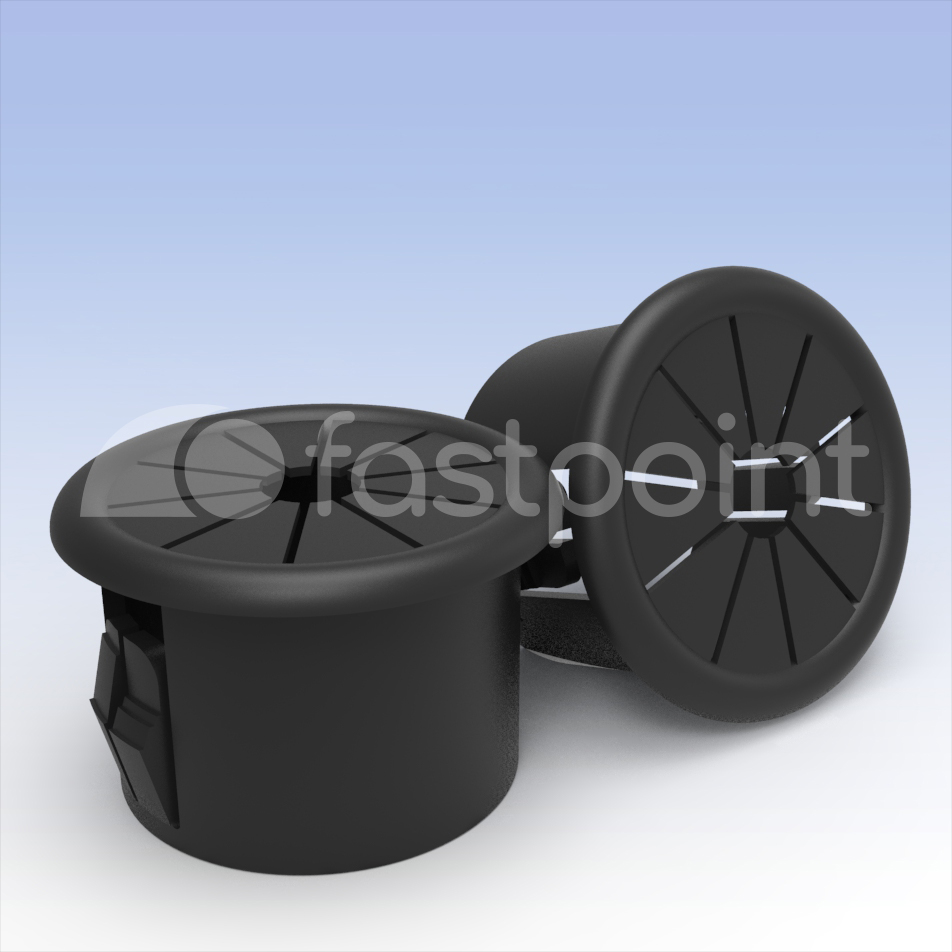

Product:Rigid grommets with segmented membrane Bore 12.7 to 76.2 mm

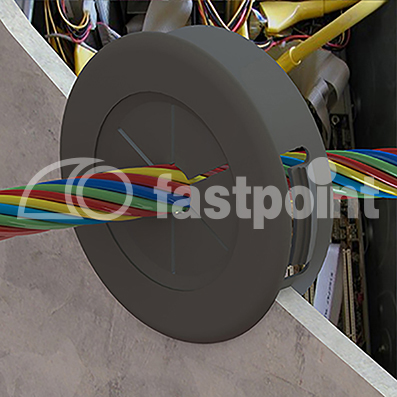

Rigid cable grommets with membranes are manufactured from PA66 and have UL/CSA certification. Thanks to their flexible segments, they adapt to any shape and diameter of cables and pipes. They snap into place. They offer electrical and mechanical protection to cables and pipes while absorbing vibration and shock.

CodeABHoleThicknessCavoMOQ-PcsDATA SHEETCADViewCart
17642AA0115,29,8Ø 12,7max 3,2Ø 7,62.500
17643AA0131,811,5Ø 30,2max 3,2Ø 24,12.500
17644AA0133,411,5Ø 31,8max 3,2Ø 25,82.500
17645AA0144,511,5Ø 34,9max 3,2Ø 25,42.000
17646AA0147,511,8Ø 44,5max 3,2Ø 34,92.000
17647AA0154,012,4Ø 50,8max 3,2Ø 41,61.000
17648AA0166,819,05Ø 63,5max 6,4Ø 50,0450
17649AA0180,019,05Ø 76,2max 6,4Ø 62,7300
17701AA0123,811,5Ø 22,2max 3,2Ø 14,32.000
5880AA0118,512,8Ø 15,90,8 - 3,2Ø 10,11.000
5881AA0121,415,3Ø 19,10,8 - 3,2Ø 10,11.000
5882AA0122,616,8Ø 20,60,8 - 3,2Ø 9,7500
5883AA0123,817,8Ø 22,20,8 - 3,2Ø 11,1500
5884AA0127,021,5Ø 25,40,8 - 3,2Ø 11,4500
5885AA0129,524,0Ø 27,80,8 - 3,2Ø 11,5500
5886AA0137,825,4Ø 34,90,8 - 3,2Ø 11,3500
5887AA0140,933,1Ø 38,10,8 - 3,2Ø 11,3500
